Wind sensors

Wind speed sensors, crane wind speed meters, anemometers for wind turbines and wind direction meters are crucial tools for the safe and efficient use of wind energy.

KRIWAN offers high quality anemometers and wind direction sensors for various applications such as wind turbines or photovoltaic systems for every environmental condition, whether less demanding applications or applications under extreme conditions such as freezing rain or in salt water. KRIWAN wind sensors are characterized by their outstanding quality and durability.

We provide you with high-quality sensors that can withstand even extreme conditions and deliver accurate measurements.

Increase the performance of your wind turbines!

KRIWAN wind sensors - Quality without compromise

ICEfight Anemometer für extreme Wetterbedingungen
ICEfight Windrichtungssensor für extreme Wetterbedingungen

Anemometer

The KRIWAN anemometer records the actual wind speed and transforms it contact-free into a linear output signal. The sensor is storm- and weather-proof. The evaluation takes place separately via a measuring device, a display instrument or in the connected control and monitoring technology.



Wind vane

The KRIWAN wind direction sensor detects the current wind direction and converts it into a linear output signal without contact. The sensor is storm- and weather-proof. The evaluation takes place separately via a measuring device, a display instrument or in the connected control and monitoring technology.

Precise and robust

When technical systems are exposed to permanent environmental influences and extreme weather, changes in the environment must be registered comprehensively, accurately and reliably in order to protect people and machinery from damage and destruction.

Reliability has the highest priority

Extreme temperatures, humidity, storms or hail can impair the function of such systems. KRIWAN wind sensors safely withstand climatic and mechanical influences and ensure the operational reliability of the systems even under extreme weather conditions.

A perfect fit for every application

Specially adapted to different applications, various wind sensors are available. From simple application areas with unheated sensors to our standard sensors with heating for industrial applications and meteor sensors for demanding meteorological applications.

Precise measurement in wind and weather

ICEfight in action

Mix and Match - Modular design of the KRIWAN wind sensors

The KRIWAN wind sensors are characterized not only by their high quality, but also by the large variety, which enables our customers to find the right anemometer or the right wind vane for their respective area of ​​application. We offer wind sensors with mast mounting, central mounting or pendulum mounting. As connection variants, we offer plugs or cables as well as a combination of both variants. Our wind sensors are as individual as their areas of application.

Further areas of application for KRIWAN wind sensors

The KRIWAN wind sensors can also be used in various other areas. There is a suitable KRIWAN wind sensor for every environmental condition. They can be used in less demanding applications as well as in extreme conditions.

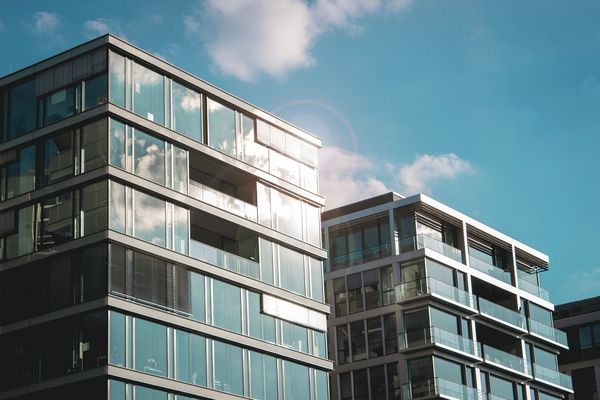

Building technology

The Eco-Line and Business-Line wind sensors are particularly suitable for use in building technology.

Learn more

Photovoltaics

The Eco-Line wind sensors are particularly suitable for use with photovoltaic systems.

learn more

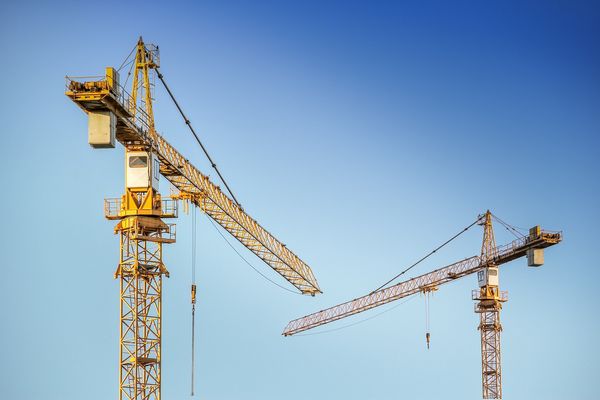

Crane systems

The wind sensors of the Business-Line and Premium-Line as well as the categories Offshore, Heavy Duty and ICEfight Offshore are particularly suitable for use in crane systems.

Lern more

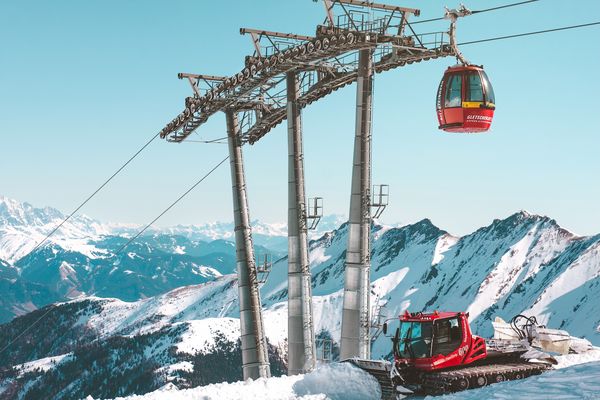

Cable cars and ski lifts

The wind sensors of the Business-Line and Premium-Line as well as the ICEfight category are particularly suitable for use for cable cars and ski lifts.

Lern more

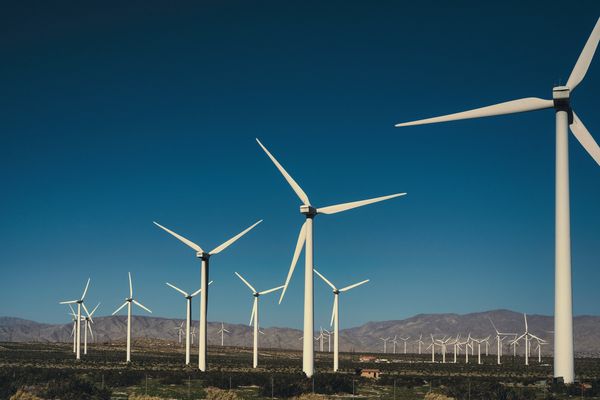

Wind turbines

The wind sensors of the Business-Line and Premium-Line as well as the categories ICEfight, Offshore, Heavy Duty and ICEfight Offshore are particularly suitable for wind turbine applications.

learn more

Windsensoren für Hydrologie

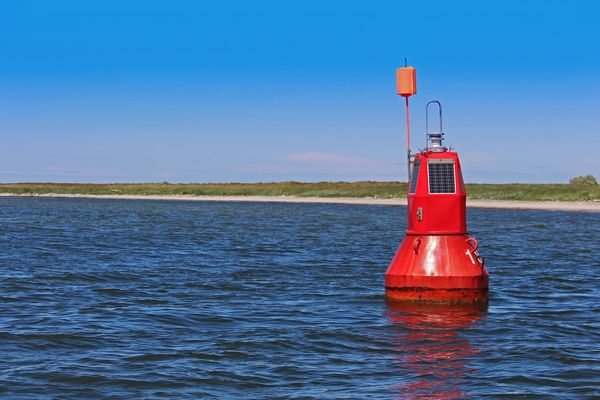

Hydrology and Meterology

The wind sensors of the Business-Line and Premium-Line as well as the categories Offshore, Heavy Duty and ICEfight Offshore are particularly suitable for applications in the fields of hydrology and meterology.

Building and greenhouse regulation

The wind sensors of the Business-Line and the Premium-Line as well as the category Heavy Duty are especially suitable for the application in building and greenhouse regulation.

Learn more

Product variety KRIWAN wind sensors - tailor-made for every application

Every area of ​​application for wind sensors is different and requires different product features. It doesn't matter whether you need a simple wind vane for your photovoltaic systems or whether you want to equip a wind farm on the sea with reliable wind measurement technology - KRIWAN has the right solution for your area of ​​application: high quality, reliable and precise.

Product overview as PDF

Category Eco-Line Business-Line Premium-Line ICEfight Offshore Heavy Duty
Description Basic product for moderate weather zones Standard product for industrial applications Premium product for demanding wind measurement technology and for difficult weather conditions, WMO-compliant High-end product for extreme risk of icing at very low temperatures High-end product for particularly corrosive environmental conditions (salt spray-resistant special coating) High-end product for extremely demanding environmental conditions (dust-resistant thanks to specially sealed bearings)
Types INT10 H Anemometer,
INT10 BA Anemometer,
INT10 C Anemometer,
INT30 H Wind Direction,
INT30 BA Wind Direction
INT10 Anemometer,
INT10 K Anemometer,
INT10 OC Anemometer,
INT30 Wind Direction,
INT3 Wind Direction,
IN30 B Wind Direction
INT10 M Anemometer,
INT30 M Wind Direction
INT10 IF Anemometer,
INT30 IF Wind Direction
INT10 OF Anemometer,
INT30 OF Wind Direction
INT10 HD Anemometer,
INT30 HD Wind Direction
Application Building technology,
Photovoltaics
Cranes,
Ski lifts,
Cable cars,
Wind farms,
Building technology,
Hydrology,
Meteorology,
Building and greenhouse control
Cranes,
Ski lifts,
Cable cars,
Wind farms,
Hydrology,
Meteorology,
Building and greenhouse control
Ski lifts,
Cable cars,
Wind farms
Cranes,
Wind farms,
Hydrology,
Meteorology
Cranes,
Wind farms,
Hydrology,
Meteorology,
Building and greenhouse control
Max.
measurement range
50 m/s,
360°
50 m/s,
360°
75 m/s,
360°
75 m/s,
360°

100 m/s,
360°

100 m/s,
360°
Signal output Standard: 0-10 V,
Standard: 4-20 mA
Standard: 0-10 V,
Standard: 4-20 mA
Standard: 0-10 V,
Standard: 4-20 mA
Standard: 0-10 V,
Standard: 4-20 mA
Standard: 0-10 V,
Standard: 4-20 mA
Standard: 0-10 V,
Standard: 4-20 mA
Start-up speed < 0,5 m/s < 0,4 m/s < 0,4 m/s < 1,0 m/s < 1,0 m/s (ϑu = 20 °C) < 1,0 m/s
Stability For wind speed of 60m/s (max. 30 min) For wind speed of 80m/s (max. 30 min) For wind speed of 80m/s (max. 30 min) For wind speed of 80m/s (max. 30 min) For wind speed of 100 m/s (max. 30 min) For wind speed of 100 m/s (max. 30 min)
Connection 5-pin plug (M12),
7-pin plug (M16)
Plug: e. g. 5-pin plug (M12),
Cable: e. g. 3m 5x0.75 mm²,
Cable with plug: e. g. 3m 5x0.75mm² with 7-pin plug
Plug: e. g. 5-pin plug (M12),
Cable: e. g. 3m 5x0.75 mm²
6-pin plug (M16) 6-pin plug (M16) 6-pin plug (M16)
Heating Without / simple heating in the housing In the housing In the housing In the cup anemometer or in the wind vane In the housing In the cup anemometer or in the wind vane
Mounting Mast Mast, central, pendulum Mast, central Mast Mast Mast
Certification

CE

CE, UL/CSA CE, UL/CSA CE, UL CE, UL CE, UL



Windsensoren für den Einsatz bei schwierigen Wetterbedingungen

Standard wind sensors INT10 and INT30

Our KRIWAN standard wind sensors are ideal for monitoring wind speeds and wind directions under normal environmental conditions. KRIWAN has the right wind sensor for you: from simpler applications in the Eco-Line to more complex applications in the Business and Premium-Line.

Application

To help you find the right sensor for your challenge, we have divided our standard wind sensors the INT10 and INT30 into the following three categories:

Eco-line

  • Basic product for simple tasks, unheated

Buisiness-Line

  • Standard product for industrial applications, with heating

Premium-Line

  • Meteor sensor for meteorological applications, with heating

Technical features

Category Eco-Line Buisiness-Line Premium-Line
Heating element no yes (20 Watt) yes (20 Watt)
UL/CSA-Approval no yes yes
WMO-conform no no yes
Max. measurement range 55 m/s 55m/s 75m/s

Customized voltage output signals

Customized current output signals

Customized frequency output signals

no yes yes
Standard output signal 0-10 V / 4-20 mA



Further articles of the standard INT10 and the INT30 with different specifications on request.

ICEfight INT10 IF and INT30 IF wind sensors

For the use in extreme weather conditions, for example at high altitudes. The heater integrated into the cup star or vane enables trouble-free operation even in freezing rain.

Application

KRIWAN anemometers and wind vanes of the ICEfight series are used wherever, in addition to the demanding detection of wind speed or wind direction, trouble-free operation must be ensured even under the most difficult environmental conditions, especially where there is an extreme risk of icing at very low temperatures.

This requirement applies in particular:

  • For the monitoring of ski lifts and cable cars.
  • For wind power plants for energy optimization

Technical features

A heater with ample capacity, to which electrical power is fed contact-free and lossless from the fixed part of the sensor, is located inside the anemometer cup or the vane. Because this heater extends out to the extremity of the anemometer cup or vane, all parts of the anemometer cup or vane are heated with a high efficiency. At ambient temperatures at which icing can develop, the heater turns on and this nearly excludes any likelihood of icing at the hooked up heater within the approved ambient temperatures. The temperature of the heater is monitored, and the heater switches itself off autonomously at high surface temperatures.

Designation

INT10 IF

Anemometer

INT10 IF

Anemometer

INT10 IF

Anemometer

INT30 IF

Wind direction

INT30 IF

Wind direction

Article number 13N300S53 13N310S22 13N320S25 13N330S33 13N330S34
Measurement range 0-50m/s 0-75m/s 0-50m/s 0-360° 0-360°
Signal output 4-20mA 4-20mA 0-573Hz
open Collector
4-20mA 0-20mA
Supply voltage DC 24V
Mounting Mast
Connection 6 pol. Plug (M16)
Heating 120W

ICEfight Windsensoren zum Einsatz unter extremen Wetterbedingungen
Windsensoren für den Einsatz bei schwierigen Wetterbedingungen

Offshore wind sensors INT10 OF and INT30 OF

Special offshore wind sensors have been developed for the use on the open sea. The offshore anemometer and the offshore wind vane are characterized by a salt fog resistant special coating.

Application

For the use on the open sea as well as onshore under particularly corrosive environmental conditions such as salt spray and fog. KRIWAN anemometers and wind vanes are used for sophisticated detection of wind speed and wind direction, e.g.

  • For monitoring crane systems
  • In wind power plants for energy optimization
  • In building technology for blind protection
  • In hydrology and meteorology
  • As a weather station component

Technical features

The KRIWAN anemometer INT10 OF records the actual wind speed and transforms it contact-free into a linear output signal. The KRIWAN INT30 OF wind direction sensor records the current wind direction and also converts it into a linear output signal without contact. The sensors are designed to be storm- and weather-proof. Due to the self-regulating heating, use down to -40°C is possible. The evaluation is carried out separately via a measuring device, a display instrument or in the connected control and monitoring technology.

Designation

INT10 OF

Anemometer

INT10 OF

Anemometer

INT30 OF

Wind direction

Article number 13N700S021 13N700S022 13N750S021
Measurement range 0-100m/s 0-75 m/s 0-360°
Supply voltage DC 24V
Mounting Mast
Connection 6 pol. Plug (M16)
Heating 20W
Signal output 4-20mA

Heavy Duty Wind Sensors INT10 HD and INT30 HD

For particularly demanding environmental conditions with increased contamination potential. The specially sealed bearing enables use in dusty environments.

Application

KRIWAN anemometers and wind vanes of the Heavy Duty series are used to record the wind speed or wind direction under difficult environmental conditions. Trouble-free operation must be ensured even under the most difficult environmental conditions, especially where there is an extreme risk of icing at very low temperatures. Suitable for the use in dusty environments due to specially sealed bearings.

This requirement applies in particular:

  • For the monitoring of ski lifts and cable cars
  • For wind power plants for energy optimization

Technical features

The KRIWAN anemometer of the Heavy Duty series is used wherever, in addition to the sophisticated detection, the KRIWAN anemometer detects the current wind speed and converts it into a linear output signal without contact. The sensor is storm and weatherproof. The evaluation is done separately via a measuring device, a display instrument, or in the connected control and monitoring system. Within the cup anemometer is a generous dimensioned heating, which is supplied without contact and mechanically lossless from the stationary sensor part with electrical energy. As this heater extends to the ends of the cup anemometer, all parts of the cup anemometer are heated highly efficiently. At ambient temperatures at which ice may form, switch on the heater, icing with connected heating and within the permitted ambient temperature is almost impossible. The heating is temperature-controlled and switches off automatically at too high surface temperatures.

Designation

INT10 HD

Anemometer

INT30 HD

Wind direction

Article number 13N310S201 13N330S201
Measuring range 0-100m/s 0-360°
Supply voltage Mast
Mounting DC 24V
Connection 6 pol. Plug (M16)
Heating 120W
Signal output 4-20mA

ICEfight Windsensoren zum Einsatz unter extremen Wetterbedingungen
