Voltage and current relays

With the INT69 UY Diagnose device family, KRIWAN offers reliable and user-friendly solutions for protecting and monitoring high-precision and sensitive electrical components, drives and electrical loads. The causes of malfunctions and resulting damage to electrical equipment are often due to
increased current consumption, incorrect phase sequence or a deviating supply voltage. The new generation of KRIWAN INT69 UY Diagnose voltage monitors ensure trouble-free and safe operation of the plant, are fully networkable and thus provide valuable data for condition monitoring.

The KRIWAN INT89 I Diagnose current relay is used in combination with the KRIWAN INT185 current transformer for current monitoring. Fast-response current monitoring increases the availability and service life of a machine.

To the brochure

State-of-the-art voltage monitors and current relays

Setting standards in terms of quality and reliability

In modern industry, monitoring electrical voltage is of crucial importance. Our voltage monitors provide precise monitoring and protect your facilities from unexpected voltage fluctuations. KRIWAN relies on innovative technologies to ensure the highest safety standards. Our voltage monitors and current relays contribute to optimizing energy consumption while simultaneously minimizing environmental impacts.

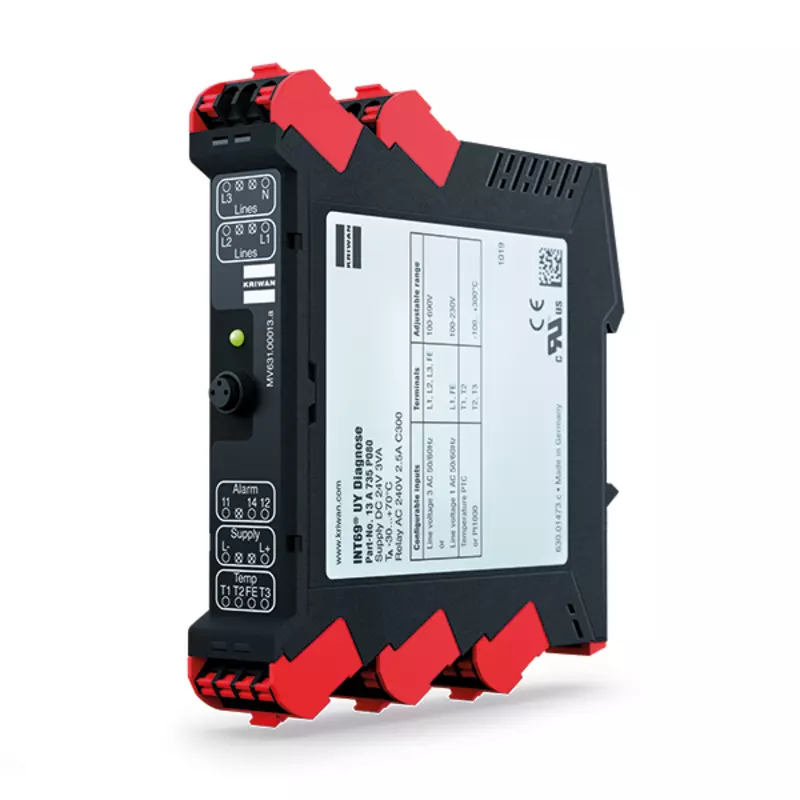

Voltage monitoring with the INT69 UY Diagnose

Voltage relay Basic

Voltage relay Basic

The efficient solution for small, cost-critical plants

  • Monitoring of single-phase or three-phase networks
  • Compact housing for screw mounting
  • Flat plug
  • Temperature: PTC
  • Fixed monitoring range

Voltage relay all-in-one

Voltage relay all-in-one

Flexible use in large-scale plants, in high-precision and sensitive applications

  • Monitoring of single-phase and three-phase networks
  • Control cabinet mounting on top-hat rail
  • Push-in terminals, quick and easy wiring
  • Temperature: PTC or PT1000
  • Neutral wire break monitoring

Features of the INT69 UY voltage relay

Extensive monitoring

Monitoring of: Phase sequence, phase failure, phase asymmetry, over-/undervoltage, temperature

Diagnose Port

Operating data can be read out via the Diagnose Port

LED as status indicator

Easy recognition of the system status via LED

Networking made easy

Can be networked into higher-level systems and controllers, also for remote monitoring

Technical features INT69 UY voltage relay

Article number **A635S021 **A635S022 **A635S023 **A635S031 **A635S032 **A635S033

Supply voltage

AC 50/60Hz 115-240V ±10% 3VA

or AC 50/60Hz 24V ±10% 3VA

Approval UL
Temperature measuring circuit 1-2 AMS sensors in series alternative 1-9 PTC sensors according to DIN 44081, DIN 44082 in series
Mounting Screw mounting

Mains voltage monitoring

- Monitoring area

- Accuracy

- Shutter delay time 1

- Shutter delay time 2



AC 50/60 Hz, 220-230V

±25%

60s

1s



AC 50/60 Hz, 380-400V

±15%

60s

1s



AC 50/60 Hz, 440-480V

±12%

60s

1s



AC 50/60 Hz, 220-230V

±25%

120s

15s



AC 50/60 Hz, 380-400V

±15%

120s

15s



AC 50/60 Hz, 440-480V

±12%

120s

15s

Article number 13A735P080 31A735P080 41A735P080 52A735P080
Supply voltage DC 24V ±20% 2W AC 50/60 Hz 24V ±10% 3 VA AC 50/60 Hz 115V ±10% 3 VA AC 50/60 Hz 230V ±10% 3VA
Approval UL
Temperature measuring circuit 1-2 AMS sensors in series alternative 1-9 PTC sensors according to DIN 44081, DIN 44082 in series
Mounting Snap on 35 mm Standard rail according to EN 60715

Mains voltage monitoring

- Monitoring area

- Accuracy



AC 50/60 Hz, 150-690 V ±10 %

±2,5%

Areas of application of the INT69 UY Diagnose voltage relay

Current relay INT69 I2 Diagnose and INT89 I Diagnose

The INT69 I2 and INT89 I Diagnose current relays are a further development of the established KRIWAN trip units. In addition to the INT69 I2 or INT89 I Diagnose, the INT185 current transformer is required as the second component of the KRIWAN monitoring system. Fast-response current monitoring increases the availability and service life of a machine.
The INT69 I2 or INT89 I Diagnose stores operating and fault data in a non-volatile memory. This data can be read out and evaluated for diagnostics. This trip unit is mainly used in installations where current monitoring is required.

With current monitoring, the following events lead to tripping:

  • Permanent exceeding of the switch-off value for the tripping delay time.
  • Exceeding of the 1.5-fold switch-off value after expiry of the start-up bridging time
  • A short circuit or an interruption at a current input
Motorschutzrelais INT89

Technical features INT69 I2 and INT89 I current relays

Designation INT69 I2 INT69 I2 INT69 I2 INT89 I INT89 I INT89 I
Article number 13A571P080 22A571P080 31A571P080 13A576P080 22A576P080 31A576P080
Supply voltage

24 V DC

115-230 V ~ 50 Hz  /

120-240 V ~ 60 Hz

24 V AC 50/60 Hz



24 V DC

115-230 V ~ 50 Hz /
120-240 V ~ 60 Hz

24 V AC 50/60 Hz
Temperature measuring circuit 1-2 AMS sensors in series alternatively 1-9 PTC sensors according to DIN 44081, DIN 44082 in series Not available
Mounting Screw mounting Snap-on mounting on 35 mm standard rail according to EN 60715 or
Screw mounting
Approval

UL

VDE
