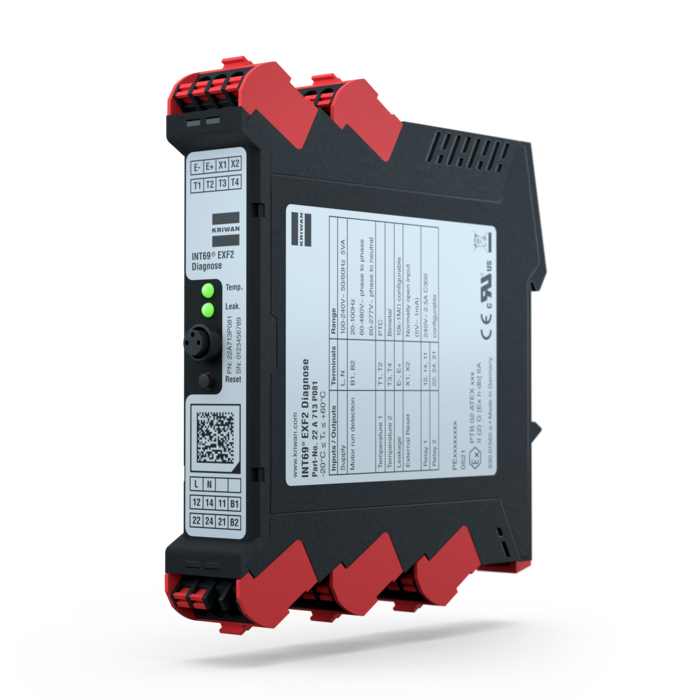

INT69 EXF2

INT69 EXF2 Diagnose BASIC EX

The slim KRIWAN pump protection relay INT69 EXF2 Diagnostics is suitable for temperature monitoring for a pump that is operated in an Ex zone. The protective relay is installed in a control cabinet outside the EX zone. Two relays provide the necessary operational safety. A button and an external input are available as a reset in the event of an interlocked shutdown of the two relays. The run detection function allows monitoring of operating hours and switching cycles in the internal memory. Monitoring of a service interval is also possible in this way.

Article number Supply voltage
20 A 713 P081 AC/DC 50/60 Hz 24V
22 A 713 P081 AC 50/60 Hz 100 - 240V



Product information

Find all the important information about your product.

The INT69 EXF2 Diagnose is a universal and versatile protection relay. The following inputs and outputs are available for monitoring electrical components:

Terminals Inputs and outputs
L/L+, N/L- Supply voltage
T1, T2 Temperature 1 (PTC)
T3, T4 Temperature 2 (bimetal)
E+, E- Leakage (resistance measurement)
B1, B2 Run detection motor
X1, X2 External reset
12, 14, 11 Relay 1 (temperature*)
22, 24, 21 Relay 2 (leakage*)

*Setting ex works

Protection functions and behavior can be flexibly adjusted to the application by parameterization. The INT69 EXF2 Diagnose stores operating and fault data in a non-volatile memory. This data can be read out and evaluated for diagnose. The protective relay is mainly used for the explosion protection of pumps and agitators.

Supply voltage

22 A 713 P081

20 A 713 P081



100-240 V ~ 50/60 Hz ±10 % 5 VA

24 V ~/⎓ 50/60 Hz ±10 % 5 VA

Permissible ambient temperature Ta -20°C ≤ Ta ≤ +60°C

Temperature measuring circuit, bimetal

– Type

– Contact suitable for

– Max. line length



for an NC contact

24 V ⎓ 20 mA

100 m

PTC temperature measuring circuit

– Type

– R25, total

– RTriggering, static

– RReset

– Short circuit monitoring

– Break monitoring

– Applied voltage

   – Temperature 1

   – Temperature 2

– Max. line length



1-9 PTC sensors according to DIN VDE V 0898-1-401 in series

<1,8 kΩ

4,5 kΩ ±20 %

2,75 kΩ ±20 %

<20 Ω

>20 kΩ



24 V ⎓

24 V ⎓

100 m

Leakage measuring circuit

– Type

– Measuring range

– Resolution

– Accuracy

– Applied voltage

– Max. line length



Resistance measurement between electrode pairs

10 k...1 MΩ

1 kΩ

±(1 kΩ + 10 % of the MV)

Ca. 5 V ~

100 m

Input of internal reset

– Type

– Contact suitable for

– Max. line length



For one normally open contact

5 V ⎓ 1 mA

30 m

Diagnose Port Diagnose Port (DP)

Run detection input

– Operation with FC

– Clock frequency range

– Operating frequency range

– Phase-phase detection range

– Phase zero detection range

– Max. line length



Suitable

2-16 kHz

20-100 Hz

60-480 V ~ +10 %

60-277 V ~ +10 %

3 m

Reset of lock or restart delay (only possible once any errors have been rectified)

– Option 1:

– Option 2:



– Option 3:





Mains reset >5 s (not for temperature inputs)

Reset button >1 s leakage

Reset button >5 s temperature

External reset >1 s leakage

External reset >5 s temperature

Alarm/warning relay

– Contact

– Rating data (UL/CSA)

– Nominal load (ohmic)

– Mechanical service life



Min. 24 V ~/⎓ 20 mA

Max. 240 V ~ 2,5 A C300 (NO contact)

240 V ~ 10 A

Ca. 1 million cycles

Degree of protection as per EN 60529 IP20

Connection type

- General



Tension spring connection (push-in) 0,2-2,5 mm²

Housing material PA 66 GF 30
Fixing Control cabinet housing (basic grid 22.5 mm), clippable on to 35 mm standard rail as per EN 60715
Dimensions See dimensions in mm

Weight

– 22 A 713 P081

– 20 A 713 P081



Ca. 250 g

Ca. 200 g

Test regulations

EN 61000-6-2

EN 61000-6-3

EN 61010-1

UL60730

EN ISO 80079-37:2016

Overvoltage category II

II (2) G [Ex h db] IIA

Degree of pollution 2

Approval EN ISO 80079-37:2016

Compare our products and find the right protection relay for pumps.

  INT69 PYF Diagnose Premium INT69 YF Diagnose EXTENDED INT69 YF Diagnose STANDARD INT69 F Diagnose BASIC INT69 EXF2 Diagnose BASIC EX
Motor temperature PTC, Pt100, Pt1000, bimetal PTC, Pt100, Pt1000, bimetal PTC, Pt100, Pt1000, bimetal PTC, Pt100, Pt1000, bimetal -
Temperature 1 PTC, Pt100, Pt1000 PTC, Pt100, Pt1000 PTC, Pt100, Pt1000 PTC, Pt100, Pt1000, bimetal PTC
Temperature 2 PTC, Pt100, Pt1000 PTC, Pt100, Pt1000 PTC, Pt100, Pt1000 - Bimetal
Leakage 1

Conductance measurement

Conductance measurement, switching input

Conductance measurement, switching input Conductance measurement Conductance measurement
Leakage 2 Switching input

Conductance measurement, switching input

Conductance measurement, switching input

- -
Analog input 0/4 – 20 mA 0/4 – 20 mA - - -
Phase monitoring

Phase failure, phase sequence, phase asymmetry, undervoltage and overvoltage

Phase failure, phase sequence, phase asymmetry, undervoltage and overvoltage

Phase failure, phase sequence, phase asymmetry, undervoltage and overvoltage

Run detection Run detection

Current monitoring

Current transformer - - - -
Power measurement

Apparent, active and reactive power, Cosφ

- - - -
Relay 1 Alarm Alarm Alarm Temperature Temperature
Relay 2 Warning Warning - Leakage Leakage
Interface Diagnostic port (DP)
Modbus RTU (RS485)
Diagnostic port (DP) Diagnostic port (DP) Diagnostic port (DP) Diagnostic port (DP)

Housing width

45mm 45mm 45mm 22.5mm 22.5mm
Reset function Network reset Network reset Network reset

Reset button/ external reset/ network reset

Reset button/ external reset/ network reset

Supply voltage

AC 50 / 60 Hz 100 – 240V

22 A 721 P081 22 A  701 P081 22 A 700 P081 22 A 712 P081 22 A 713 P081

Supply voltage

AC / DC 50 / 60 Hz 24V

20 A 721 P081 20 A 701 P081 20 A 700 P081 20 A 712 P081 20 A 713 P081

Look at the monitoring modules, the options and examples of use of our pump protection relay.

Monitoring module Options Example of use
1x Temperature 1 PTC Motor temperature sensor
1x Temperature 2 Bimetal Motor temperature sensor, bearing temperature, winding temperature, mechanical seal, etc.
1x Leakage 1 Resistance below, exceed resistance Resistance measurement between leakage electrodes, resistance measurement from leakage electrode to pump housing
1x Phase monitoring Run detection Measuring range phase-phase, measuring range phase-neutral conductor
1x Relays 1 Alarm Shutdown when exceeding limit value or when falling below limit value (e.g. motor temperature, temperature 1, leakage 1, etc.)
1x Relays 2 Alarm, warning Shutdown when exceeding limit value or when falling below limit value (e.g. motor temperature, temperature 1, leakage 1, etc.),
Warning when exceeding limit value or when falling below limit value (e.g. motor temperature, temperature 1, leakage 1, etc.)
1x Interfaces Diagnostic Port (DP) Connection of a USB gateway (INT600 DU Gateway) or a Bluetooth gateway (INT600 DB Gateway) to use the INTspector App,
Connection of Modbus gateway (INT600 DM Gateway) for retrieval of parameters and integration into the system control
1x Reset function Reset button, external reset, mains reset Resetting the interlocked shutdown as soon as there is no longer an error

The most frequently asked questions about the
INT69 F Diagnose BASIC

What functions does the INT69 EXF2 Diagnose offer?

The slim KRIWAN protection relay with EX approvals is used for monitoring temperature with PTC and bimetal. Further functions are a leakage input (conductance measurement), run detection, internal memory, reset button and an external reset input.

What do I need to parameterize and read out the diagnostic data?

You need an end device, such as a laptop, cell phone or tablet with the KRIWAN INTspector App installed and a KRIWAN USB or Bluetooth gateway to establish the connection between INT69 EXF2 Diagnose and end device.

How do you recognize the current status (operating status)?

For quick and easy status indication and troubleshooting, a blink code is output via an LED on the front of the protective relay housing. This consists of a cyclic flashing sequence which can be looked up in the data sheet.
For a more detailed view, the KRWIAN INTspector App is available. The diagnostic data provides an overview of the operating behaviour of your pump. Events, operating times, switching cycles and current measured values are displayed and help with detailed analysis on site.

Which data is stored in the protection relay and for how long?

All events such as warnings, errors or messages are stored in a non-volatile internal memory and can be looked at via the INTspector App. The event memory contains the last 100 events with time and date. There are also counters for all events.

What is the benefit of the run detection B1, B2?

The run detection enables monitoring of operating hours and switching cycles in the internal memory. Monitoring of a service interval is also possible that way.

What is the leakage input used for?

Submersible pumps and agitators, for example, are often already equipped by the manufacturer with moisture electrodes that can be monitored with the INT69 F Diagnose at E-, E+. These have the function of monitoring against penetrating medium or dry running. For this purpose, the resistance (conductance) between the two electrodes is measured. Depending on the application, the operating mode must be set to resistance exceeding or resistance falling below.

Which options are available to do a reset?

A reset button and an external reset input are available when the two relays of the INT69 EXF2 Diagnose are locked out. The relays can be switched back on after a interlocked shutdown following a reset and if there is no longer an error.

What are the functions of the relays of the the INT69 EXF2 Diagnose?

The INT69 EXF2 Diagnose has two relays (changeover contacts) which can be flexibly assigned to the inputs. This does not apply to the two temperature inputs, which are always active with relay 1 and can be deactivated when not in use by inserting a resistor at the respective input. The limit values of the two temperature inputs are fixed for safety reasons. Additional monitoring functions can be flexibly assigned to relays 1 and 2 via parameterization using the INTspector App. If an error or warning (leakage input) is detected, the associated relay switches off. The two relays operate according to the closed-circuit current principle.

How is the KRIWAN protection relay integrated into the higher-level system control?

To integrate the KRIWAN protection relay into your control system, you need an INT600 DM Gateway that converts the pump operating data into a Modbus protocol (Modbus RTU).

What is included in the scope of delivery?

The packaging contains the protection relay (depending on the voltage variant AC/DC 24V or AC 100-240V) and the data sheet / operating instructions. In addition, two resistors for deactivating the temperature inputs are included in the scope of delivery.

What is the factory setting (default) of the KRIWAN protection relay?

All KRIWAN protection relays are delivered with a factory setting. The INT69 EXF2 Diagnose can be found on the product page in the download area as a parameter list. The parameterization can be individually adapted to your application during installation and commissioning using the KRIWAN INTspector App.

Who can I contact if I have any questions?

We are happy to help you with your questions. Simply use the contact form on our homepage and send us a request. Our customer support will get in touch with you.

Accessories

Find the right accessories for our products.

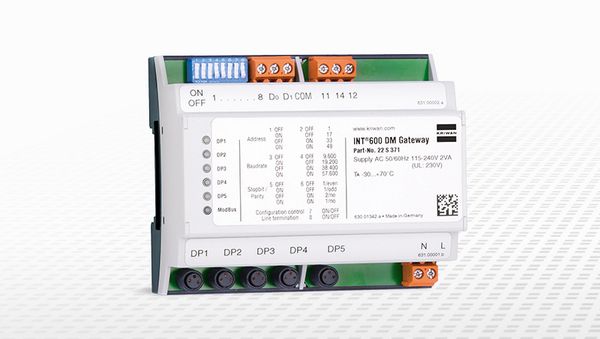

Modbus-Gateways

Connect your KRIWAN diagnose devices via Modbus gateway

Learn more

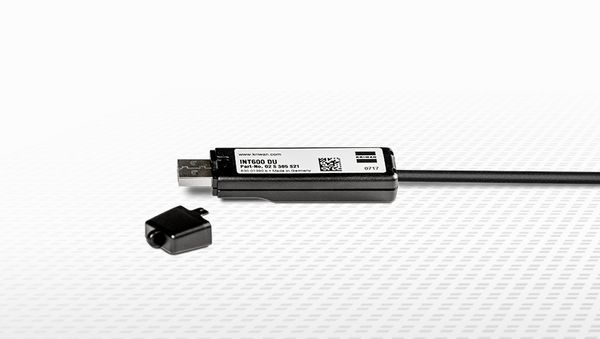

USB-Gateway

Connect your KRIWAN diagnose devices via USB gateway to the INTspector app

Learn more

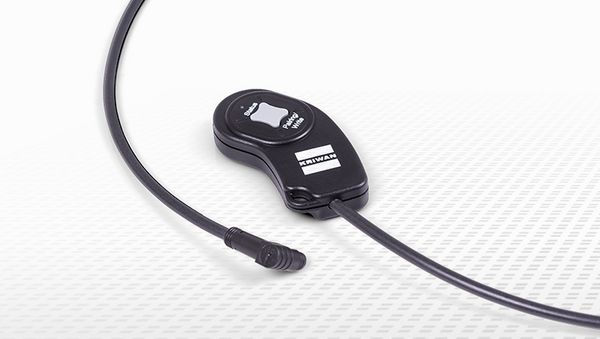

Bluetooth-Gateway

Connect your KRIWAN diagnose devices to the INTspector app via Bluetooth gateway

Learn more

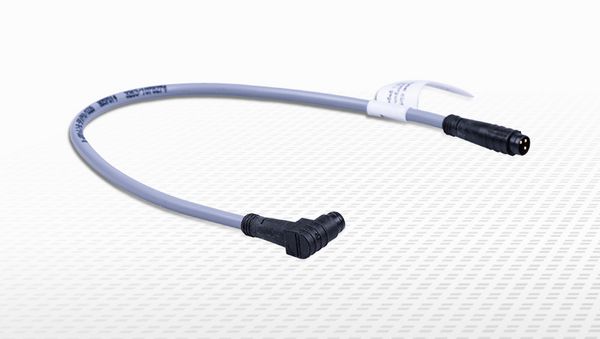

DP Kabel

The right connection between your protection device and the gateway

learn more

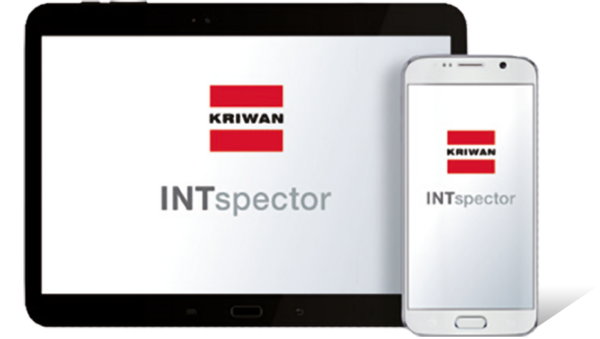

INTspector App zur Fehler- und Zustandsdiagnose

INTspector App

For the parameterization of your device and the readout of all important data

learn more

More interesting products

Do you already know our extensive product range?

INT69 F Diagnose BASIC

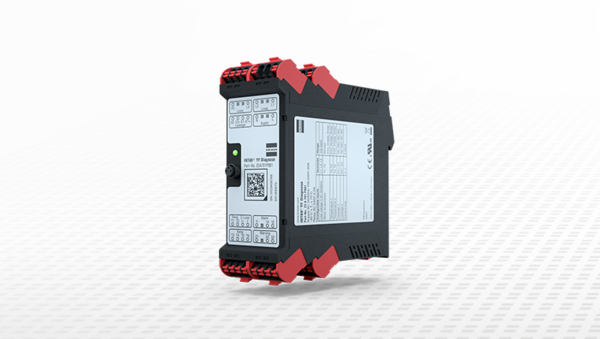

INT69 YF Diagnose EXTENDED

INT69 YF Diagnose STANDARD

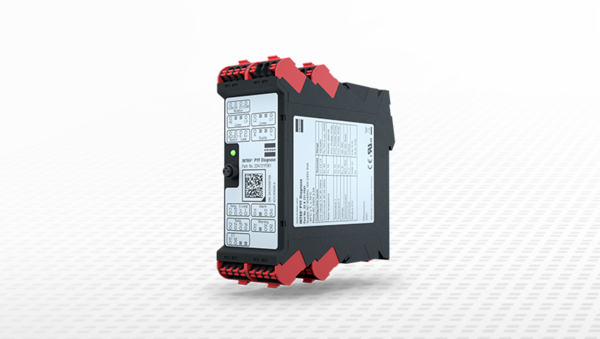

INT69 PYF Diagnose PREMIUM
