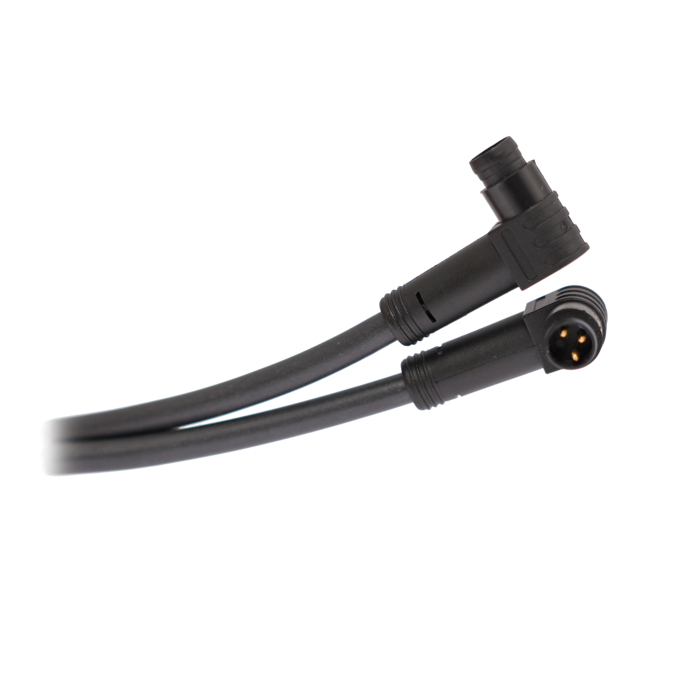

DP cable

The DP cable has a high-quality finish and ensures the optimum connection from a KRIWAN protection relay to the Modbus gateway (INT600 DM gateway). It is angled on both sides and available in different lengths so that the KRIWAN components can be perfectly integrated into your overall system without any losses.

Article number Designation
FK02098062 DP cable, angled-angled plug; length 0.3 m
FK02098077 DP cable, angled-angled plug; length 1.0 m
FK02098069 DP cable, connector angled-angled; length 10.00 m; with M16 gland

Product information

Find all important information about your product.

The DP cable is connected to the DP input of the KRIWAN protective relays and to one of the 5 DP inputs of the Modbus gateway (INT600 DM gateway). This enables the integration of the KRIWAN protection relay into the plant control system. The 0.30 m long DP cable and the 1.00 m long DP cable are assembled without cable gland. The 10.00 m long DP cable is assembled with an M16 cable gland.

The following features distinguish the DP cable:

  • Connection of KRIWAN protective relays to the Modbus gateway (INT600 DM gateway) via the DP interface
  • Angled connectors on both sides
  • High quality processing of the DP cable
Voltage range Max. 60V
Temperature range -30…+90°C
Cable length 0,30 m
UL requirement 600V Insulation voltage
Connection type KRIWAN protection relay Plug angled
Connection type Modbus gateways Plug angled

Weight

  • FK02098062
  • FK02098077
  • FK02098069




13 g

34 g

390 g
