Optical level monitoring is used for non-contact single-point measurement of liquid levels, e.g. in compressors, pumps, tanks, etc. The liquid level sensor consists of two components, the screw-in part and the evaluation unit. The screw-in part for optical level detection is permanently installed at the measuring point. The electronic evaluation unit can be installed or replaced without the time-consuming process of evacuating the system and draining the oil.
The optical level monitoring devices from KRIWAN protect refrigerant compressors in particular from leaks, oil deposits in the refrigeration circuit or other faults. The range includes various device variants for monitoring the liquid level in refrigerant compressors, oil and refrigerant collectors and oil separators. These also include level switches for precise liquid level measurement.

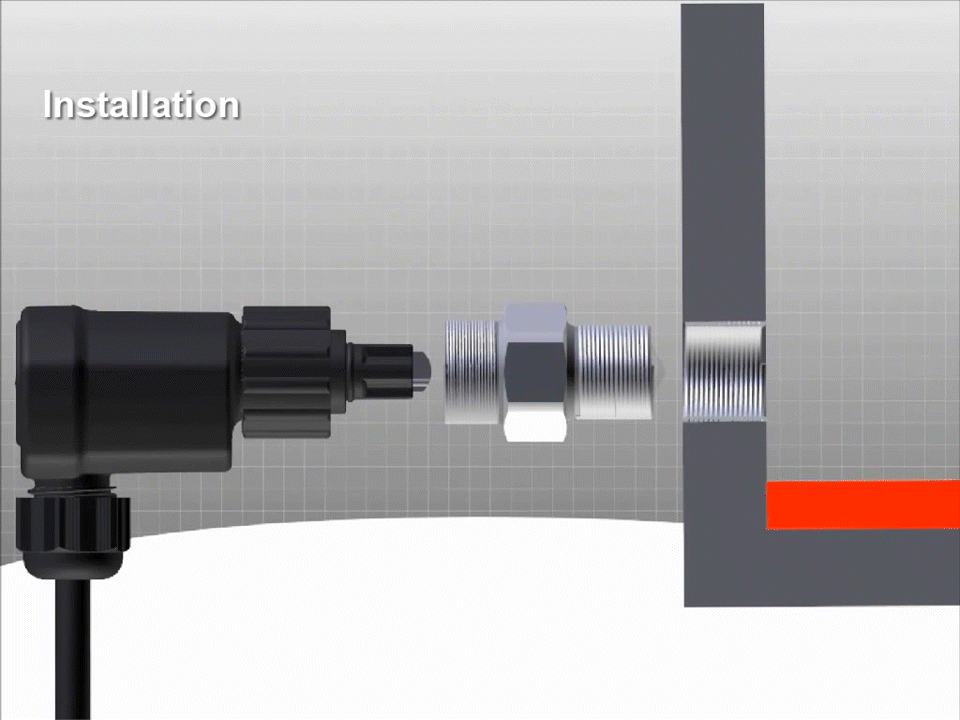

The KRIWAN optical level monitor consists of two (three for the ADAPT Line) individual parts: The electronic evaluation part and the optical screw-in part. The screw-in part is screwed firmly to the measuring point and remains permanently in the system. The electronic evaluation unit (and the connection cable via M12 plug-in connector in the ADAPT Line) is mounted on it.

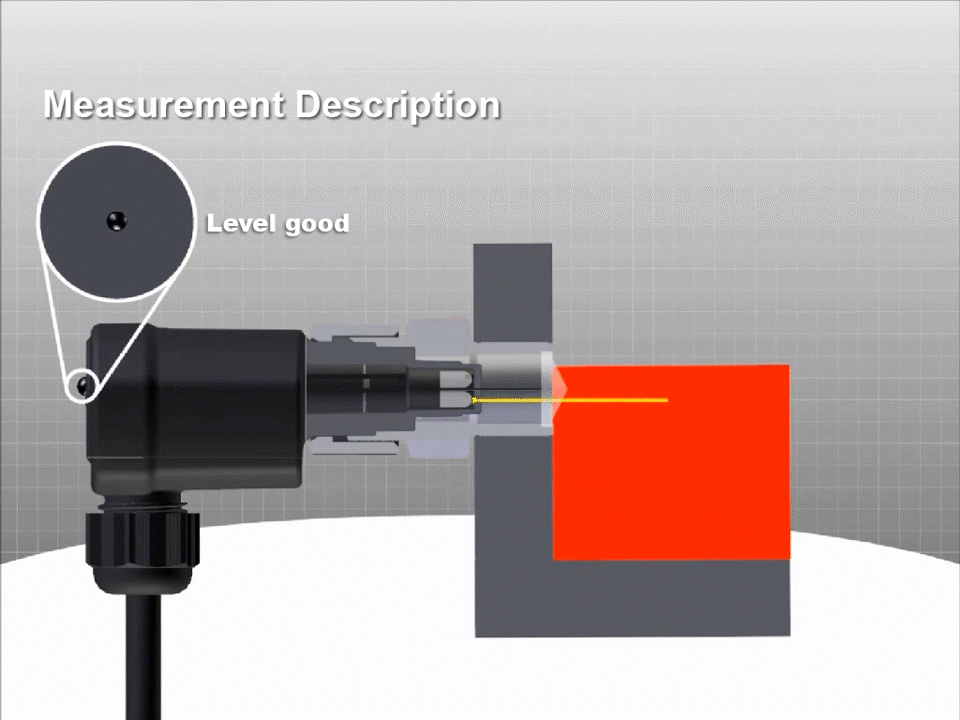

Our KRIWAN level switches are available in two versions: Measurement of the minimum and maximum fill level. The blink code indicates whether there is enough liquid - or too much - in the system. This is an optical level measurement.
If the electronics need to be replaced, this can be done without evacuating the system. The screw-in part remains screwed into the system, while the electronics can be easily removed and replaced without the need for an electrician.
Robust design or increased temperature requirements?
Select the appropriate optical level monitor from our extensive product range.
Our level monitor categories for every application:
The level switches BASIC an BASIC IceFight are robust and offer reliable performance for standard applications. Thanks to their durability and easy installation, they are ideal for a wide range of industrial applications. Perfect for users who rely on solid technology without compromising on quality and reliability. The BASIC IceFight level monitor is specially developed for applications in low temperatures and prevent icing.
More product information, technical data and areas of application
The level switches ADAPT stand for maximum flexibility and easy integration. Thanks to the innovative M12 plug-in connection, cables can be attached individually and as required. This solution offers enormous advantages, especially in large systems: Maintenance work can be carried out quickly and efficiently, as the cable can remain unchanged in the wiring harness. The level monitor ADAPT also makes it easy to replace the sensor without the need for an electrician. Perfect for applications where customisability and reliability count.
More product information, technical data and areas of application
The level switches ADAPT EXTENDED have been specially developed for demanding applications. With a temperature resistance of up to 160°C and encapsulated electronics, they are ideal for use in heat pumps and refrigerant compressors. The innovative design prevents icing and increases durability even under extreme conditions. The level monitor ADAPT EXTENDED is the first choice for systems that have to work with modern refrigerants and high temperature requirements.
More product information, technical data and areas of application
The level switches EX offer maximum safety in potentially explosive environments. With their specially certified design, they fulfil all requirements for use in areas such as chemical plants, refineries or other industries with potential explosion risks. The sensors in this series guarantee maximum reliability, durability and protection - even under the most demanding conditions. The level monitor EX is the ultimate solution for operators who do not want to take any risks.
More product information, technical data and areas of application
In addition to the evaluation unit, the two-component design also includes the matching screw-in part. Our screw-in parts for the optical level switches are available for different thread types and are suitable for natural refrigerants such as NH3 and CO2.
| Article number | Operating pressure | Medium temperature |
| 02K460S23 | 42 bar | -30°C...+120°C |
| 02K460S24 | 46 bar (-10°C…+120°C) 34,5 bar (-30°C…-10°C) | -30°C...+120°C |
| 02K460S33 | 42 bar | -30°C...+120°C |
| 02K460S34 | 46 bar (-10°C…+120°C) 34,5 bar (-30°C…-10°C) | -30°C...+120°C |
| 02K460S40 | 140 bar (-10°C…+120°C) 105 bar (-30°C…-10°C) | -30°C...+120°C |
| Article number | Operating pressure | Medium temperature |
| 02K463S040 | 140 bar (-10°C…+120°C) 105 bar (-30°C…-10°C) | -30°C...+120°C |
| Article number | Operating pressure | Medium temperature |
| 02K462S21 | 46 bar | -30°C...+120°C |
| 02K462S40 | 140 bar (-10°C…+120°C) 105 bar (-30°C…-10°C) | -30°C...+120°C |
| Article number | Operating pressure | Medium temperature |
| 02K465S21 | 42 bar | -30°C...+120°C |
| 02K465S22 | 46 bar (-10°C…+120°C) 34,5 bar (-30°C…-10°C) | -30°C...+120°C |
| 02K465S24 | 63 (-10°C…+120°C) 48 bar (-60°C…-10°C) | -30°C...+120°C |
| 02K465S40 | 140 bar (-10°C…+120°C) 105 bar (-30°C…-10°C) | -30°C...+120°C |
| Article number | Operating pressure | Medium temperature |
| 02K466S021 | 60 bar (-10°C…+120°C) 45 bar (-30°C…-10°C) | -30°C...+120°C |
| Article number | Operating pressure | Medium temperature |
| 02K461S21 | 42 bar (-10°C…+120°C) 31,5 bar (-30°C…-10°C) | -30°C...+120°C |
Level Measurement for Your Facilities
Enhance your level measurement with our advanced level sensors. Our cutting-edge level sensors enable reliable level measurement, ensuring not only accuracy but also efficiency.
Our level measurement technology allows you to precisely determine the current level of your liquids, leading to optimized resource utilization and cost control. Regardless of the industry, our sensors offer tailored solutions to meet your specific requirements. We understand the importance of accurate level measurements for the smooth operation of your facilities, and our sensors are designed to help you maximize performance.
Rely on our experience and technology to elevate your level measurement to the next level. Contact us today to discuss customized solutions for your specific needs and optimize the efficiency of your level measurement.
KRIWAN Level monitor
Gain precise insights into the liquid levels with our state-of-the-art level sensors. As a leading provider in the field, we offer innovative solutions for accurate and reliable level measurement in various applications. Our level sensors stand out for their advanced technology and high sensitivity, providing you with precise monitoring and control over your liquids.
Whether you are in the industrial sector, environmental protection, or other fields, our level sensors offer a versatile solution to meet your requirements. With a focus on quality and precision, our sensors enable efficient monitoring to optimize resources and reduce costs. Trust in our expertise to enhance the performance of your facilities while keeping a precise eye on the liquid levels.
Discover the benefits of our level sensors and get in touch with us to discuss customized solutions for your specific needs. We are here to ensure that you always have the optimal overview of your liquids.
Often these are already installed on the compressor. However, they can also be used on pressure vessels such as oil collectors, refrigerant collectors or oil separators. For this purpose, we have screw-in parts certified in accordance with the Pressure Equipment Directive in our portfolio.
Refrigerant, oil, fruit juice, etc.
No, you don’t need to keep different versions of the level monitor on stock. You can monitor refrigerant and oil with the same product.
What possibilities do the KRIWAN INT275 - INT279 level switches offer in practice? Our application sheets provide interesting insights.
