The slim KRIWAN pump protection relay BASIC for monitoring temperature and leakage. A button and an external input are available as a reset in the event of a locked shutdown of the two relays. The running detection function enables operating hours and switching cycles to be monitored in the internal memory. With this it is also possible to monitor a service interval.
Article number | Power supply |
| 20 A 712 P081 | 24 V~/⎓ 50/60 Hz |
| 22 A 712 P081 | 100-240 V~ 50/60 Hz |
Find all important information about your product.

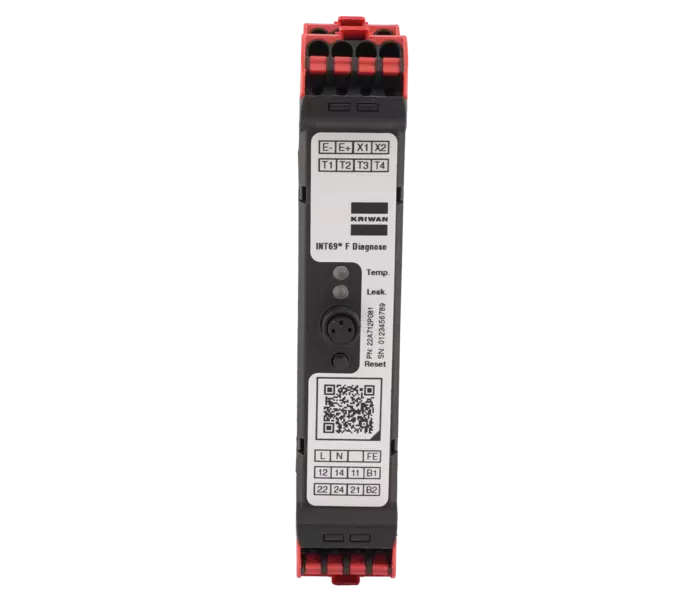

The INT69 F Diagnose is a universal and versatile protection relay. The following inputs and outputs are available for monitoring electrical components:
| Terminals | Inputs and outputs |
| L/L+, N/L- | Supply voltage |
| T1, T2 | Motor temperature (PTC*, Pt100, Pt1000, bimetal) |
| T3, T4 | Temperature 1 (PTC, Pt100, Pt1000, bimetal) |
| E+, E- | Leakage (resistance measurement*) |
| FE | Functional ground |
| B1, B2 | Run detection motor |
| X1, X2 | External reset |
| 12, 14, 11 | Relay 1 (temperature*) |
| 22, 24, 21 | Relay 2 (leakage*) |
*Setting ex works
Parametrization enables protection functions and response settings to be adapted flexibly to suit the application. The INT69 F Diagnose saves operating and fault data in a nonvolatile memory. This data can be read out and evaluated for diagnostic purposes. This protection relay device is used primarily for the protection of pumps and agitators.
Supply voltage 22 A 712 P 081 20 A 712 P 081 |
100-240 V ~ 50/60 Hz ±10 % 5 VA 24 V ~/⎓ 50/60 Hz ±10 % 5 VA / 3 W |
| Permissible ambient temperature TA | -20°C ≤ Ta ≤ +60°C |
| Permissible humidity | 0- 95% r.h., non-condensing |
| Maximum usage height | 2000 m |
Temperature measuring circuit, bimetal – Type – Contact suitable for – Max. line length |
for an NC contact 24 V ⎓ 20 mA 100 m |
PTC temperature measuring circuit – Type – R25, total – RTriggering, static – RReset – Short circuit monitoring – Break monitoring – Applied voltage – Motor temperature – Temperature 1 – Max. line length |
1-9 PTC sensors according to DIN VDE V 0898-1-401 in series <1.8 kΩ 4.5 kΩ ±20 % 2.75 kΩ ±20 % <20 Ω >20 kΩ
24 V ⎓ 24 V ⎓ 100 m |
Pt100 temperature measuring circuit – Measuring range – Resolution – Accuracy – Short circuit monitoring – Break monitoring – Applied voltage – Motor temperature – Temperature 1 – Max. line length |
-50... +300 °C 1 K 5% of the ohmic value <20 Ω >400 Ω
24 V ⎓ 24 V ⎓ 100 m |
Pt1000 temperature measuring circuit – Measuring range – Resolution – Accuracy –Short circuit monitoring – Break monitoring – Applied voltage – Motor temperature – Temperature 1 – Max. line length |
-50... +300 °C 1 K 5 % of the ohmic value <20 Ω >2.3 kΩ
24 V ⎓ 24 V ⎓ 100 m |
Leakage measuring circuit – Type – Measuring range – Resolution – Accuracy – Applied voltage – Max. line length |
Resistance measurement between electrode pairs 5 k ... 1.5 MΩ 1 kΩ ±(1 kΩ + 10 % of the MV) Approx. 24 V ~ 100 m |
Input of internal reset – Type – Contact suitable for – Max. line length |
For one normally open contact 5 V ⎓ 1 mA 30 m |
Interface – Max. Cable length | Diagnostic port (DP) 10 m |
Run detection input – Operation with FC – Clock frequency range – Operating frequency range – Phase-phase detection range – Phase zero detection range – Max. line length |
Suitable 2-16 kHz 20-100 Hz 60-480 V ~ + 10% 60-277 V ~ +10% 3 m |
Reset of lock or restart delay – Option 1 – Option 2 – Option 3
|
Mains reset >5 s (not for temperature inputs) Reset button >5 s External reset Only possible once any errors have been rectified |
Relay 1, Relay 2 – Contact – Rating data (UL/CSA) – Nominal load (ohmic) – Mechanical service life |
Min. 24 V ~/⎓ 20 mA Max. 240 V ~ 2.5 A C300 (NO contact) 240 V ~ 10 A Approx. 1 million cycles |
| Degree of protection as per EN 60529 | IP20 |
Connection type - General |
Tension spring connection (pushin) 0.2-2.5 mm |
| Housing material | PA 66 GF 30 |
| Fixing | Control cabinet housing (basic grid 22.5 mm), clippable on to 35 mm standard rail as per EN 60715 |
| Dimensions | See dimensions in mm |
Weight – 22 A 712 P081 – 20 A 712 P081 |
Ca. 250 g Ca. 200 g |
| Test regulations | EN 61000-6-2 EN 61000-6-3 EN 61010-1 Overvoltage category II Degree of pollution 2 |
| Approval | UL File No. E473026 cURus UL File Nr. E75899 cURus |
Compare our products and find the right protection relay for pumps.

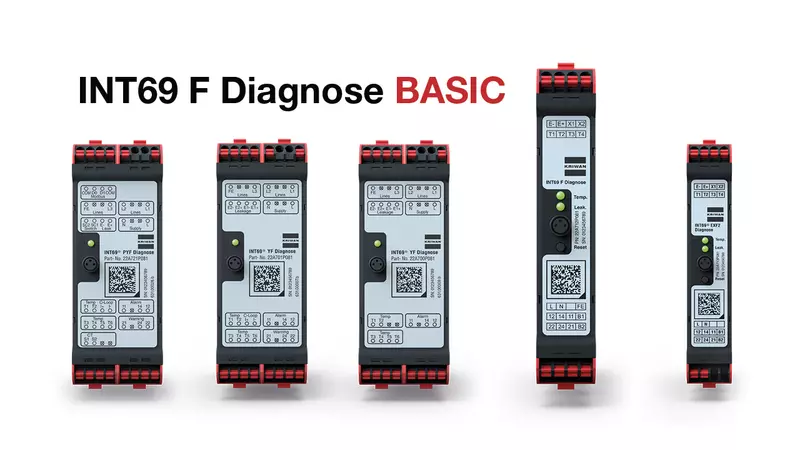

| INT69 PYF Diagnose Premium | INT69 YF Diagnose EXTENDED | INT69 YF Diagnose STANDARD | INT69 F Diagnose BASIC | INT69 EXF2 Diagnose BASIC EX | |
| Motor temperature | PTC, Pt100, Pt1000, bimetal, external relay contact | PTC, Pt100, Pt1000, bimetal, external relay contact | PTC, Pt100, Pt1000, bimetal, external relay contact | PTC, Pt100, Pt1000, bimetal | - |
| Temperature 1 | PTC, Pt100, Pt1000 | PTC, Pt100, Pt1000 | PTC, Pt100, Pt1000 | PTC, Pt100, Pt1000, bimetal | PTC |
| Temperature 2 | PTC, Pt100, Pt1000 | PTC, Pt100, Pt1000 | PTC, Pt100, Pt1000 | - | Bimetal |
| Leakage 1 | Conductance measurement | Conductance measurement | Conductance measurement | Conductance measurement | Conductance measurement |
| Switching input | float switch, external reset | float switch, external reset | float switch, external reset | - | - |
| Analog input | 0/4 – 20 mA | 0/4 – 20 mA | - | - | - |
| Phase monitoring | Phase failure, phase sequence, phase asymmetry, undervoltage and overvoltage | Phase failure, phase sequence, phase asymmetry, undervoltage and overvoltage | Phase failure, phase sequence, phase asymmetry, undervoltage and overvoltage | Run detection | Run detection |
| Measuring range | Phase-Phase: 3 ~ 20-100 Hz, 60-690 V | Phase-Phase: 3 ~ 20-100 Hz, 60-690 V | Phase-Phase: 3 ~ 20-100 Hz, 60-690 V | Phase-Neutralleiter: 20-100 Hz ~, 60-277 V Phase-Phase: 20-100 Hz ~, 60-480 V | Phase-Neutralleiter: 20-100 Hz ~, 60-277 V Phase-Phase: 20-100 Hz ~, 60-480 V |
Current monitoring | Current transformer INT185 | - | - | - | - |
| Power measurement | Apparent, active and reactive power, Cosφ, underload, overload | - | - | - | - |
| Relay 1 | Alarm, Warning | Alarm, Warning | Alarm, Warning | Temperature | Temperature |
| Relay 2 | Alarm, Warning | Alarm, Warning | - | Leakage | Leakage |
| Interface | Diagnostic port (DP) Modbus RTU (RS485) | Diagnostic port (DP) | Diagnostic port (DP) | Diagnostic port (DP) | Diagnostic port (DP) |
Housing width | 45mm | 45mm | 45mm | 22.5mm | 22.5mm |
| Reset function | Mains reset / external reset / Modbus reset | Mains reset/ external reset | Mains reset/ external reset | Reset button/ external reset/ mains reset | Reset button/ external reset/ mains reset |
Supply voltage 100-240 V ~ 50/60 Hz | 22 A 721 P081 | 22 A 701 P081 | 22 A 700 P081 | 22 A 712 P081 | 22 A 713 P081 |
Supply voltage 24 V ~/⎓ 50/60 Hz | 20 A 721 P081 | 20 A 701 P081 | 20 A 700 P081 | 20 A 712 P081 | 20 A 713 P081 |
Look at the monitoring modules, the options and examples of use of our pump protection relay.
| Monitoring module | Options | Example of use | |
| 1x | Motor temperature | PTC, Pt100, Pt1000, Bimetal | Motor temperature sensor |
| 1x | Temperature 1 | PTC, Pt100, Pt1000, Bimetal | Motor temperature sensor, bearing temperature, winding temperature, mechanical seal, etc. |
| 1x | Leakage 1 | Resistance below, exceed resistance | Resistance measurement between leakage electrodes, resistance measurement from leakage electrode to pump housing |
| 1x | Phase monitoring | Run detection | Measuring range phase-phase, measuring range phase-neutral conductor |
| 1x | Relays 1 | Alarm, warning | Shutdown or warning when exceeding limit value or when falling below limit value (e.g. motor temperature, temperature 1, leakage 1, etc.) |
| 1x | Relays 2 | Alarm, warning | Shutdown or warning when exceeding limit value or when falling below limit value (e.g. motor temperature, temperature 1, leakage 1, etc.), |
| 1x | Interfaces | Diagnostic Port (DP) | Connection of a USB gateway (INT600 DU Gateway) or a Bluetooth gateway (INT600 DB Gateway) to use the INTspector App, Connection of Modbus gateway (INT600 DM Gateway) for retrieval of parameters and integration into the system control |
| 1x | Reset function | Reset button, external reset, mains reset | Resetting the interlocked shutdown as soon as there is no longer an error |
Brief instructions
3D data
Modbus table until 31st December 2024
Modbus table from 1st January 2025
Parameter table until 31st December 2024
Modbus table from 1st January 2025
Tender specification
Application Example
KRIWAN pump protection relay INT69 F Diagnose BASIC in flood control operations
In flood control operations, the efficiency of pumps is particularly crucial for maintaining the protection of communities during extreme weather events. This holds true for organizations such as the Water and Soil Association of the Greater Havelland Main Canal - Havelland - Havelseen.
Find out more about the functions and advantages of our smart protective relays.
This video is embedded by YouTube. The data protection conditions of Google apply (link)
The slim KRIWAN protection relay is used to monitor 2 temperature inputs (zero-voltage safe for PTC, Pt100, Pt1000 or bimetal). Further functions are a leakage input (conductance measurement), run detection, internal memory, reset button and an external reset input.
You need an end device, such as a laptop, cell phone or tablet with the KRIWAN INTspector App installed and a KRIWAN USB or Bluetooth gateway to establish the connection between INT69 YF Diagnose and end device.
For quick and easy status indication and troubleshooting, a blink code is output via an LED on the front of the protective relay housing. This consists of a cyclic flashing sequence which can be looked up in the data sheet.
For a more detailed view, the KRWIAN INTspector App is available. The diagnostic data provides an overview of the operating behaviour of your pump. Events, operating times, switching cycles and current measured values are displayed and help with detailed analysis on site.
All events such as warnings, errors or messages are stored in a non-volatile internal memory and can be looked at via the INTspector App. The event memory contains the last 100 events with time and date. The last 10 events in each case are additionally recorded with extended data for all sensor inputs. There are also counters for all events.
The run detection enables monitoring of operating hours and switching cycles in the internal memory. Monitoring of a service interval is also possible that way.
Submersible pumps and agitators, for example, are often already equipped by the manufacturer with moisture electrodes that can be monitored with the INT69 F Diagnose at E-, E+. These have the function of monitoring against penetrating medium or dry running. For this purpose, the resistance (conductance) between the two electrodes is measured. Depending on the application, the operating mode must be set to resistance exceeding or resistance falling below.
A reset button and an external reset input are available after an interlocked switch-off of the INT69 F Diagnose. The relays can be switched back on after an interlocked switch-off after a reset has been done and if there is no longer an error.
The INT69 F Diagnose has two relays (changeover contacts) that can be flexibly assigned to the inputs. The only exception is the motor temperature input, which is always active with relay 1 and cannot be deactivated. For each input, the parameterization of the warning and switch-off values, a tripping delay, as well as a restart delay or also an interlocked switch-off is possible. If an error or a warning is detected, the corresponding relay switches off. The two relays operate according to the closed-circuit current principle.
The INT69 YF Diagnose offers an integrated Modbus RTU interface (RTU). This can be used for communication with the control system. An additional Modbus gateway (e.g. INT600 DM Gateway) is not absolutely necessary here.
In the package is the protection relay (depending on the voltage variant AC/DC 24V or AC 100-240V) and the brief instructions.
All KRIWAN pump protection relays are delivered with a factory setting. The one for the INT69 F Diagnose can be found on the product page in the download area as a parameter list. The parameterization can be individually adapted to your application during installation and commissioning using the KRIWAN INTspector App.
We are happy to help you with your questions. Simply use the contact form on our homepage and send us a request. Our customer support will get in touch with you.
